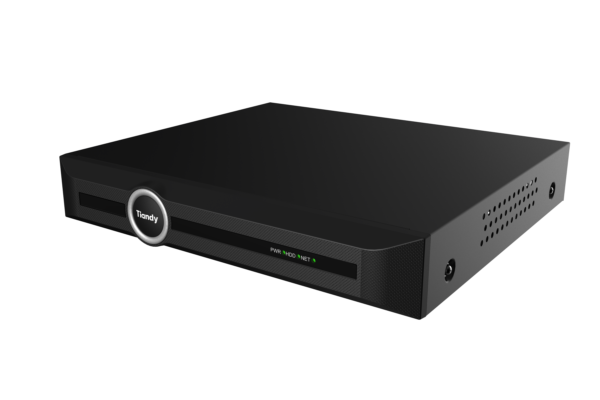

Tiandy TC-R3105 5ch NVR

Input
Video Input 5-ch
Max Resolution 6MP
Two-way Audio Input N/A
Bandwidth Income 50Mbps; Outgoing 40Mbps
Output
HDMI/VGA Output
Screen Split 1/3/4/5/6/7/9
Audio Output 1 RCA
Decoding
Decoding Format S+265/H.265/H.264
Recording Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability
Synchronous Playback
Records Encryption Yes
Hard Disk
SATA 1 SATA interface for 1 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type N/A
External Interface
Network Interface 1 RJ45 self-adaptive 10/100 Mbps network interface
USB Interface 2 USB 2.0
Serial Interface N/A
Alarm In/Out N/A
Network
Protocol TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPV4, IPV6,
Multicast, ARP, UDP, Telnet, RTMP
System Compatibility ONVIF (PROFILE S/T), SDK, P2P
General
Web Version Web6
Language Traditional Chinese, English
Operating Conditions -10 ～55 , 10%~90% RH
Power Supply DC12V 3.33A
Consumption (without HDD) 10W (without HDD)
Chassis 1U
Dimensions
Weight (without HDD) 0.8Kg (1.76lb)
HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800
44×255×231mm, (1.78×10.04×9.09 inch)
